Acid-Soluble Swellable LCM
GLO SOLUSWELL SEAL AS is an acid-soluble, swellable lost circulation material formulated for water-based drilling fluids. It is designed to efficiently seal fractures, voids, and high-permeability zones, ensuring minimal mud loss and maximum operational efficiency. Post-drilling, the product can be fully removed with acid treatment, preventing formation damage and enabling seamless continuation of operations.
Application:
- GLO SOLUSWELL SEAL is for water-based drilling fluids to control lost circulation in fractures, voids, vugs, and high-permeability zones.
- Provides rapid bridging and effective sealing while maintaining mud properties.
Common Name:
Acid-Soluble Swellable LCM for WBM
Advantages:
- Rapidly seals fractures, voids, and high-permeability zones to prevent mud loss.
- Fully removable with 15% HCl, minimizing formation damage and simplifying post-drilling operations.
- Swells in water-based muds to bridge and seal fractures effectively.
- Does not adversely affect rheology, density, or other drilling fluid properties.
- Stable up to 150°C, ensuring performance in medium-temperature wells.
- Free-flowing powder, compatible with standard mud mixing equipment.
Properties Value:

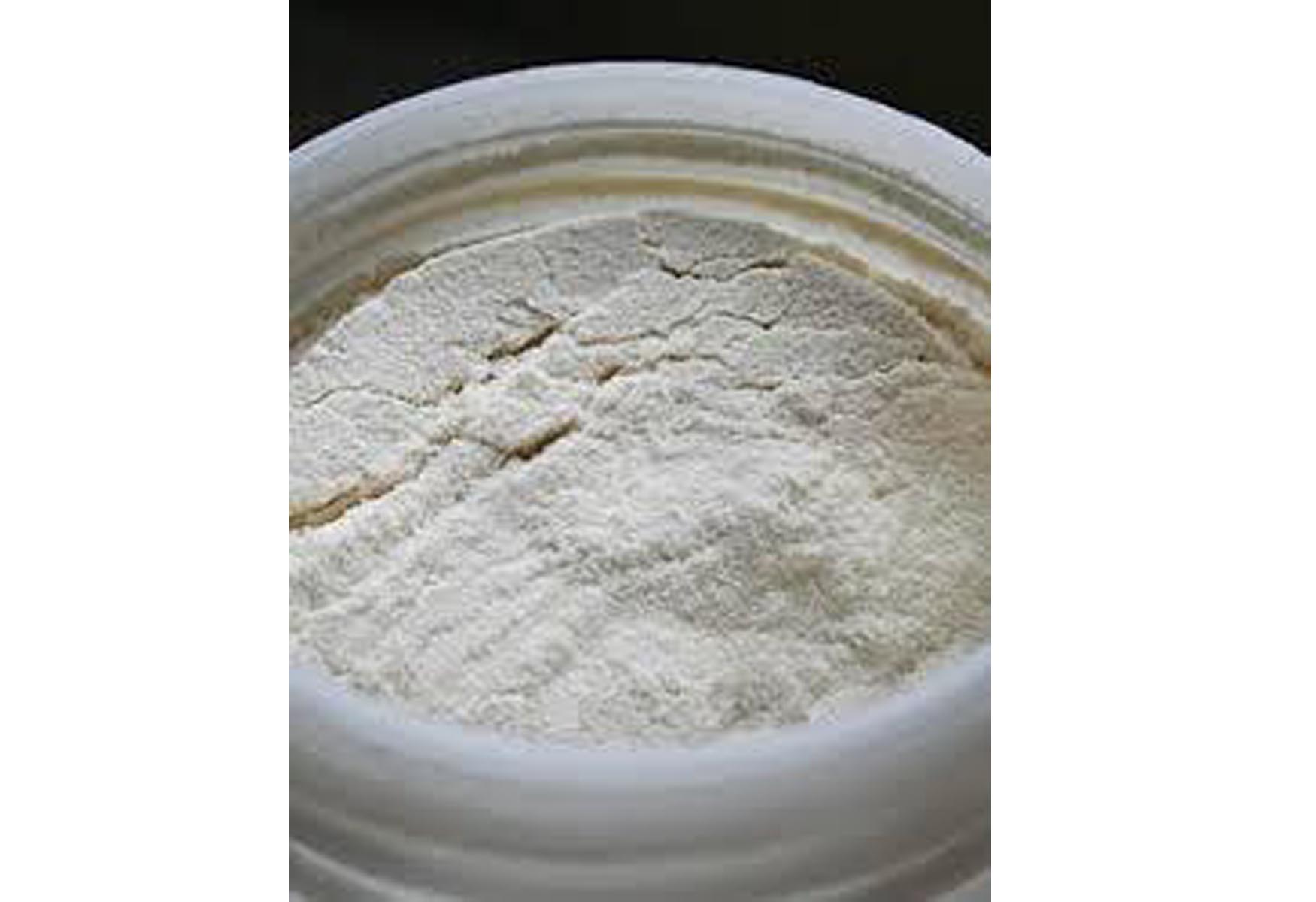

- Appearance: Off-white to light beige powder, Free-flowing, lump-free
- Moisture: ≤5%
- Bulk Density: 700-1000 kg/m³
- pH (1% Solution): 6-9
- Solubility in 15% HCL: ≥95%
- Thermal Stability: Up to 150°C
- Particle Size: 50–100 mesh (150–300 µm)
- Swelling Ratio: Swells 1.5 - 3 times in water to seal fractures effectively
- S.G: 1.6–2.00
- Solubility in HCL and Swellable: min 75%
Dosage:
The dosage varies based on drilling conditions and fluid formulations. General guidelines:
- Adjust based on fracture width and severity
- Light Loss: 2–4 lb/bbl (2.4–4.8 kg/m³)
- Moderate Loss: 4–6 lb/bbl (4.8–7.2 kg/m³)
- Severe Loss: 6–10 lb/bbl (7.2–12 kg/m³)
Packaging:
- GLO SOLUSWELL SEAL AS is packed in 11.34 kg (25 lb), 25kg/50 Lbs (22.68 Kg) Sacks.
- Private labeling and customized packaging are also available on request.
Safety and Handling:
- GLO SOLUSWELL SEAL AS must be handled as an industrial chemical, wearing protective equipment and observing the precautions as mentioned in the MSDS.
